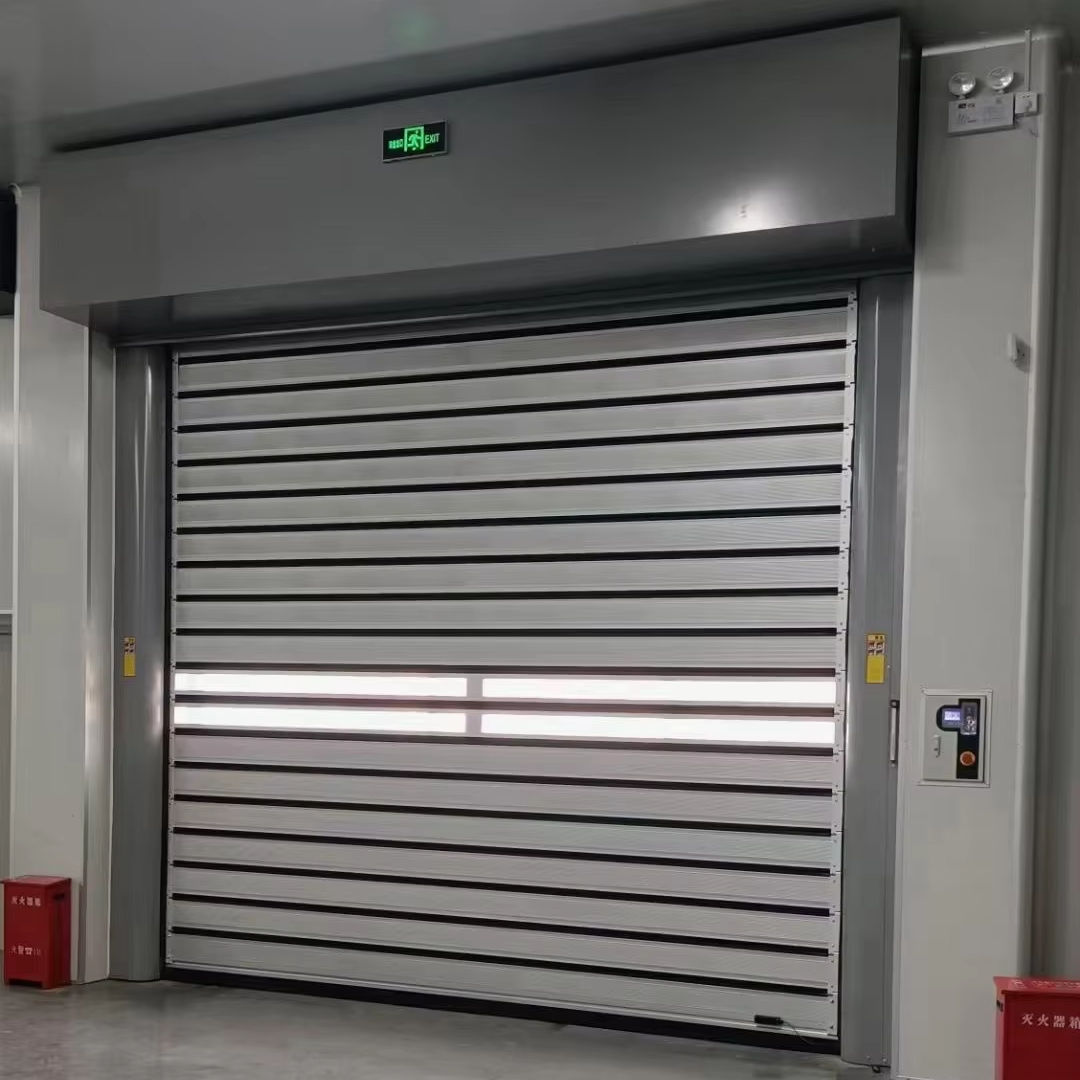

Product Introduction

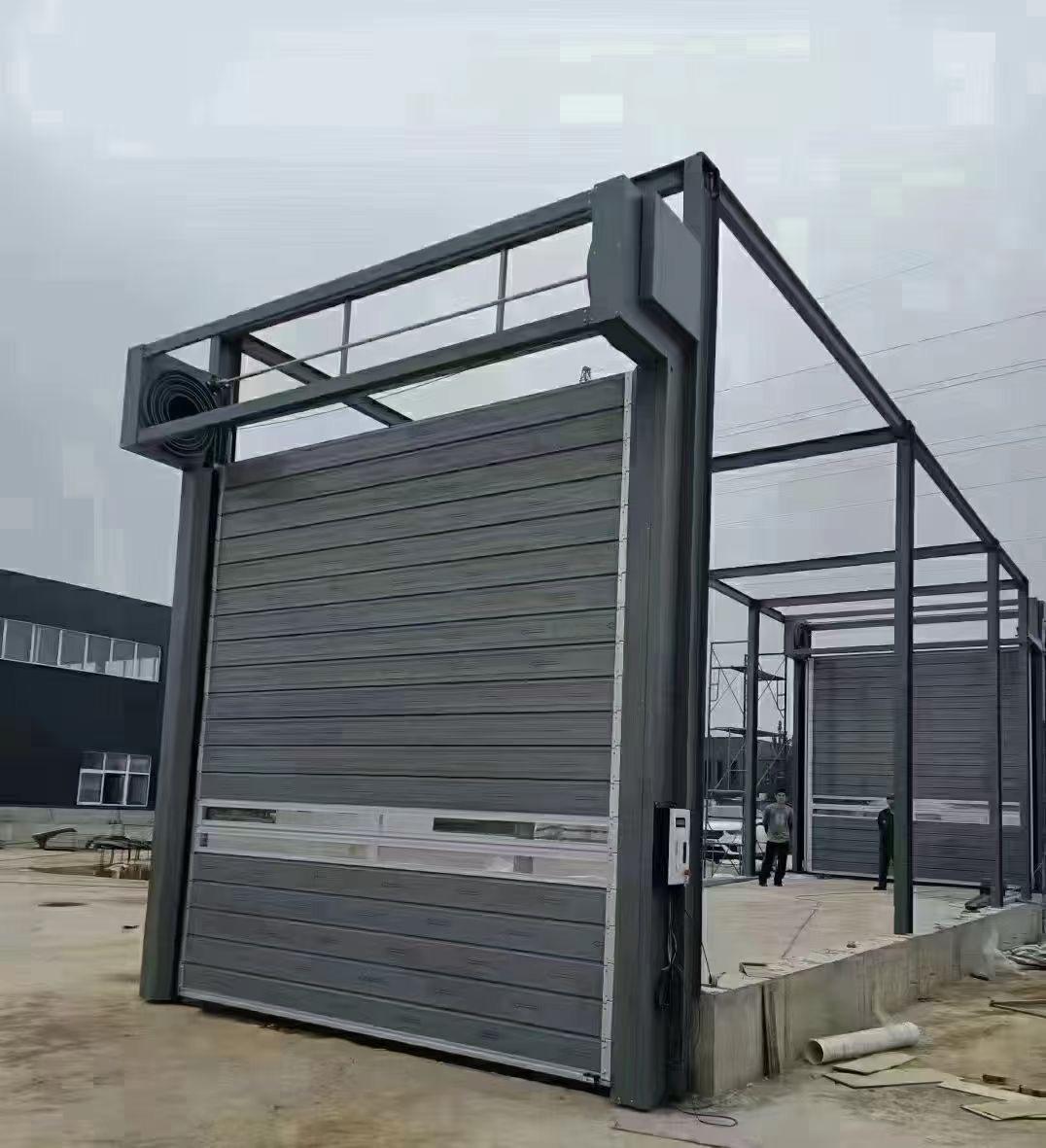

Wind Resistant High Speed Spiral Door is designed for exposed warehouses, logistics centers and industrial openings affected by wind load. The rigid aluminum panel, reinforced guide system and compact spiral lifting track help maintain stability while supporting fast opening and closing cycles.
This wind resistant spiral door can be configured with servo motor, SEW motor or SEJ motor, photocell, radar, push button, loop detector, remote control, light curtain sensor, safety airbag, magnetic card and pull cord. Anjie Door can customize opening size, color, visual window rows, control system and hardware according to project drawings and operating conditions.
- Wind resistant rigid structure
- Fast exterior opening control
- Reinforced guide rail options
- Suitable for logistics centers
- Wind resistance over 120km/h
- Custom size and colors

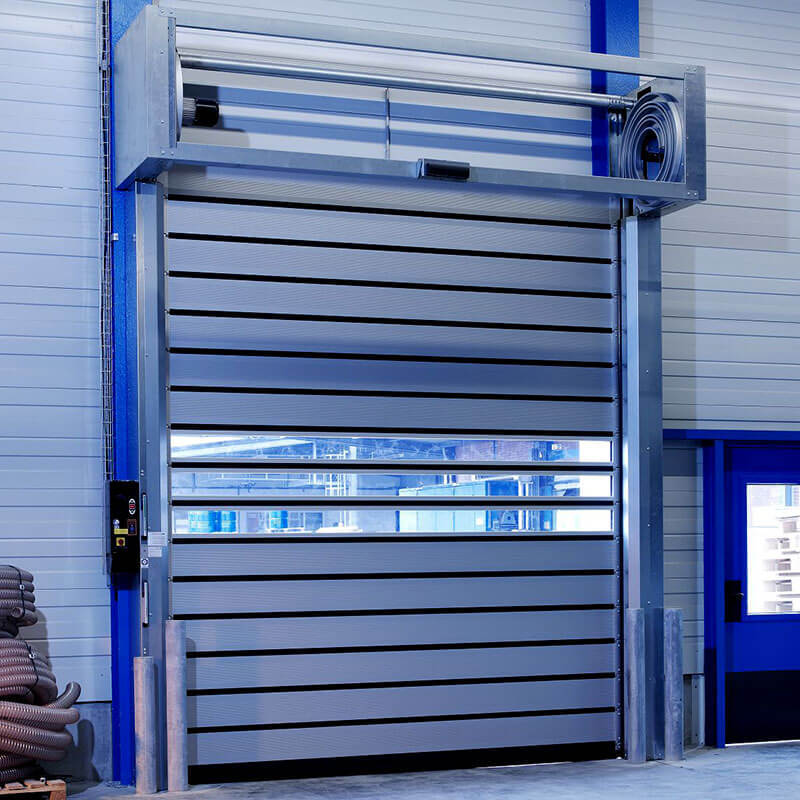

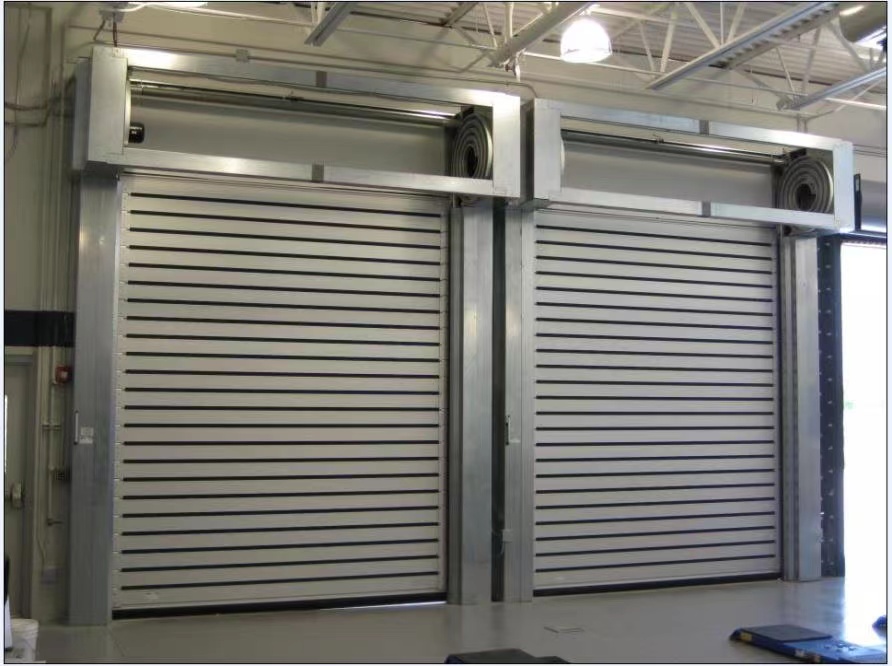

Product Description
Specification
| Door panel material | double layer high quality aluminium slat（0.8mm）, with PU foam inside, panel thickness: 40mm |
|---|---|
| Panel color | Silver, white or champagne in stock, other special colors can be customized |
| Visual window(optional) | High quality polycarbonate slat, can be choose 3-5 rows of slats as visual windows for lighting. |
| Hardware material | #304 stainless steel, ensure high quality |
| Door opener | Three kinds for choice: 1) Servo motor,0.75-1.5KW, 50-60HZ 2) SEW motor:0.75-2.2KW, 50-60HZ 3) SEJ motor:0.9-2.2KW, 50-60HZ |
| Running speed | 0.8-2.0m/s, can be adjustable |
| Operating way | Standard: photocell,radar,and push button Optional: loop detector, remote control, light curtain sensor, safety airbag,magnetic card, pull cord |
| Max size | W8000mm*H6500mm |
| Working condition | -40°C to 70°C |
| Wind resistance | Over 120km/h |
| Application | Industry, commercial related place, enjoying all advantages of high speed door, windproof door, safety door |
| MOQ | 1SET |
| Warranty | 1 year for electric parts, 5 years for mechanical parts |
| Package | LCL: plywood case, FCL: Strong carton, MOQ:1SET |
Details Images

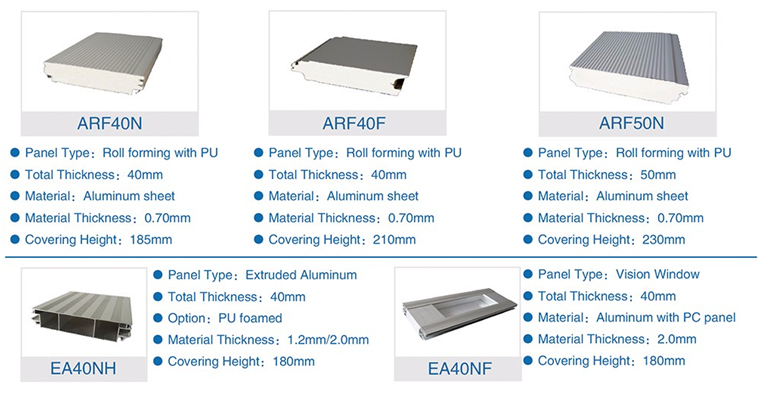

Door panel for choice

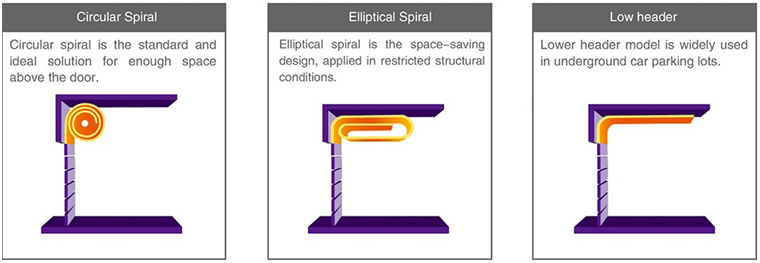

Lift type
Motor and control box
Control system for choice
Operation way and safety device
Product packaging

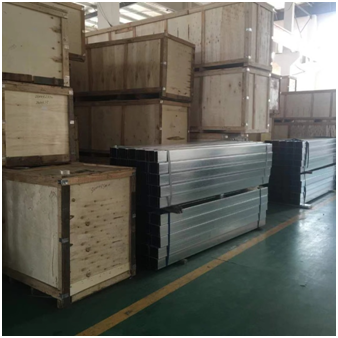

Packed with plywood wood case
Packed with bubble film then wrapped with karft paper
FAQ
Where is an wind resistant high speed spiral door commonly used?
It is commonly used for factories, workshops, logistics centers, warehouses and commercial garages where fast access, rigid closure and frequent daily cycles are required.
What information is needed before quotation?
Please provide opening width, opening height, installation side, wind exposure, daily traffic frequency, control preference and destination country.
Can the door panel color be customized?
Yes. Silver, white and champagne are common stock colors, and other special colors can be customized according to project needs.
What safety devices can be selected?
Common options include photocell, radar, push button, optional loop detector, remote control, light curtain sensor, safety airbag, magnetic card and pull cord.
Is the door suitable for exterior industrial openings?
Yes. The rigid aluminum panel, spiral track, wind-resistant structure and automatic control system make it suitable for many exterior industrial and commercial openings.
