Product Introduction

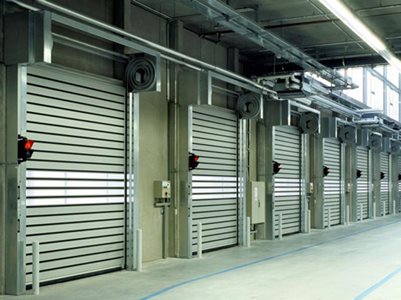

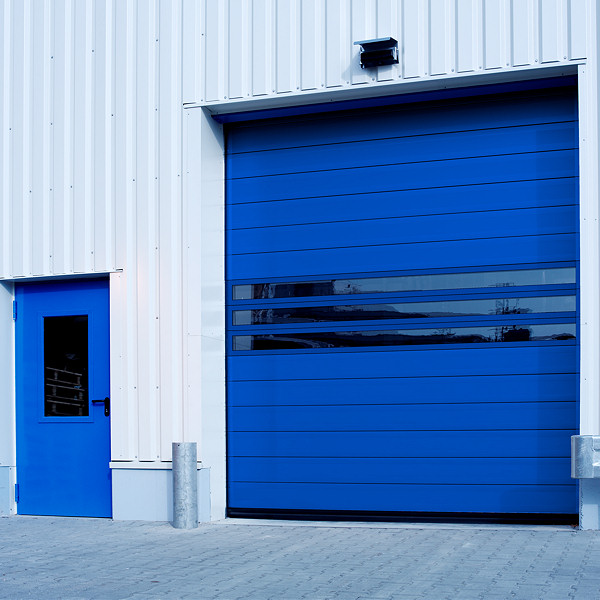

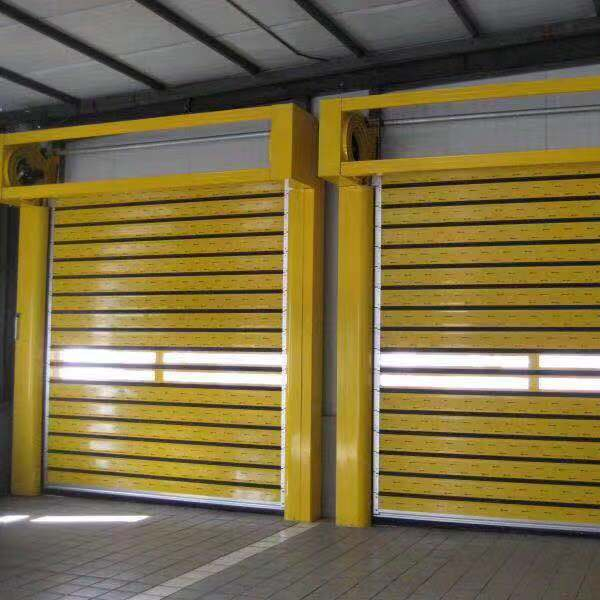

Self-Closing High Speed Safety Door is designed for industrial traffic areas where fast passage, automatic return and dependable safety protection are required. The rigid aluminum slat curtain and PU foam insulated panel move through a compact spiral track, helping the opening close quickly after vehicles or personnel pass through.
This safety spiral door can be configured with photocell, radar, push button, loop detector, remote control, light curtain sensor, safety airbag, magnetic card and pull cord. The self-closing operation helps reduce open-door time, improve environmental separation and support stable daily cycles in workshops, warehouses and industrial corridors.
- Self-closing automatic operation
- Safety sensors and protection devices
- Rigid aluminum slat curtain
- 40mm PU foam insulated panel
- Fast industrial traffic flow
- Custom size and controls
Video Description
Product Description
Specification
| Door panel material | double layer high quality aluminium slat（0.8mm）, with PU foam inside, panel thickness: 40mm |
|---|---|
| Panel color | Silver, white or champagne in stock, other special colors can be customized |
| Visual window(optional) | High quality polycarbonate slat, can be choose 3-5 rows of slats as visual windows for lighting. |
| Hardware material | #304 stainless steel, ensure high quality |
| Door opener | Three kinds for choice: 1) Servo motor,0.75-1.5KW, 50-60HZ 2) SEW motor:0.75-2.2KW, 50-60HZ 3) SEJ motor:0.9-2.2KW, 50-60HZ |
| Running speed | 0.8-2.0m/s, can be adjustable |
| Operating way | Standard: photocell,radar,and push button Optional: loop detector, remote control, light curtain sensor, safety airbag,magnetic card, pull cord |
| Max size | W8000mm*H6500mm |
| Working condition | -40°C to 70°C |
| Wind resistance | Over 120km/h |
| Application | Industry, commercial related place, enjoying all advantages of high speed door, windproof door, safety door |
| MOQ | 1SET |
| Warranty | 1 year for electric parts, 5 years for mechanical parts |
| Package | LCL: plywood case, FCL: Strong carton, MOQ:1SET |
Details Images
Door panel for choice
Lift type
Motor and control box
Control system for choice
Operation way and safety device
Product packaging
Packed with plywood wood case
Packed with bubble film then wrapped with karft paper
FAQ
Where is an self-closing high speed safety door commonly used?
It is commonly used for factories, workshops, logistics centers, warehouses and commercial garages where fast access, rigid closure and frequent daily cycles are required.
What information is needed before quotation?
Please provide opening width, opening height, installation side, wind exposure, daily traffic frequency, control preference and destination country.
Can the door panel color be customized?
Yes. Silver, white and champagne are common stock colors, and other special colors can be customized according to project needs.
What safety devices can be selected?
Common options include photocell, radar, push button, optional loop detector, remote control, light curtain sensor, safety airbag, magnetic card and pull cord.
Is the door suitable for exterior industrial openings?
Yes. The rigid aluminum panel, spiral track, wind-resistant structure and automatic control system make it suitable for many exterior industrial and commercial openings.
