Product Introduction
The Warehouse Loading Dock Sectional Door is designed for logistics centers, warehouses and industrial loading bays that need dependable overhead access with practical insulation and sealing. The galvanized steel panel with PU foam helps support stable operation around busy entry areas where forklifts, trucks and warehouse staff move throughout the day.
The door can be configured with automatic or manual operation, standard overhead lift, combined lift or vertical lift tracks according to the dock layout and building structure. Customized colors, sizes, windows, pedestrian doors and safety devices can be selected to match the project requirements.
For loading dock projects, the system supports powder-coated galvanized steel panels, industrial accessories and export packing. It is suitable for interior or exterior openings that need thermal insulation, sound insulation, space-saving movement and reliable long-term service.
Product Description
Technical Specifications
| Door panel material | Double layer galvanized steel with PU foam inside, thickness: 40mm or 50mm for choice, steel thickness: 0.35mm or 0.426mm for choice |
|---|---|
| Color | White, black, light grey, dark grey, red, silver, beige, green, etc. |
| Accessories | 3inch industrial type accessories |
| Lift type | Standard overhead lift way, combined lift way, vertical lift way |
| Window | Optional, window size 650*320mm |

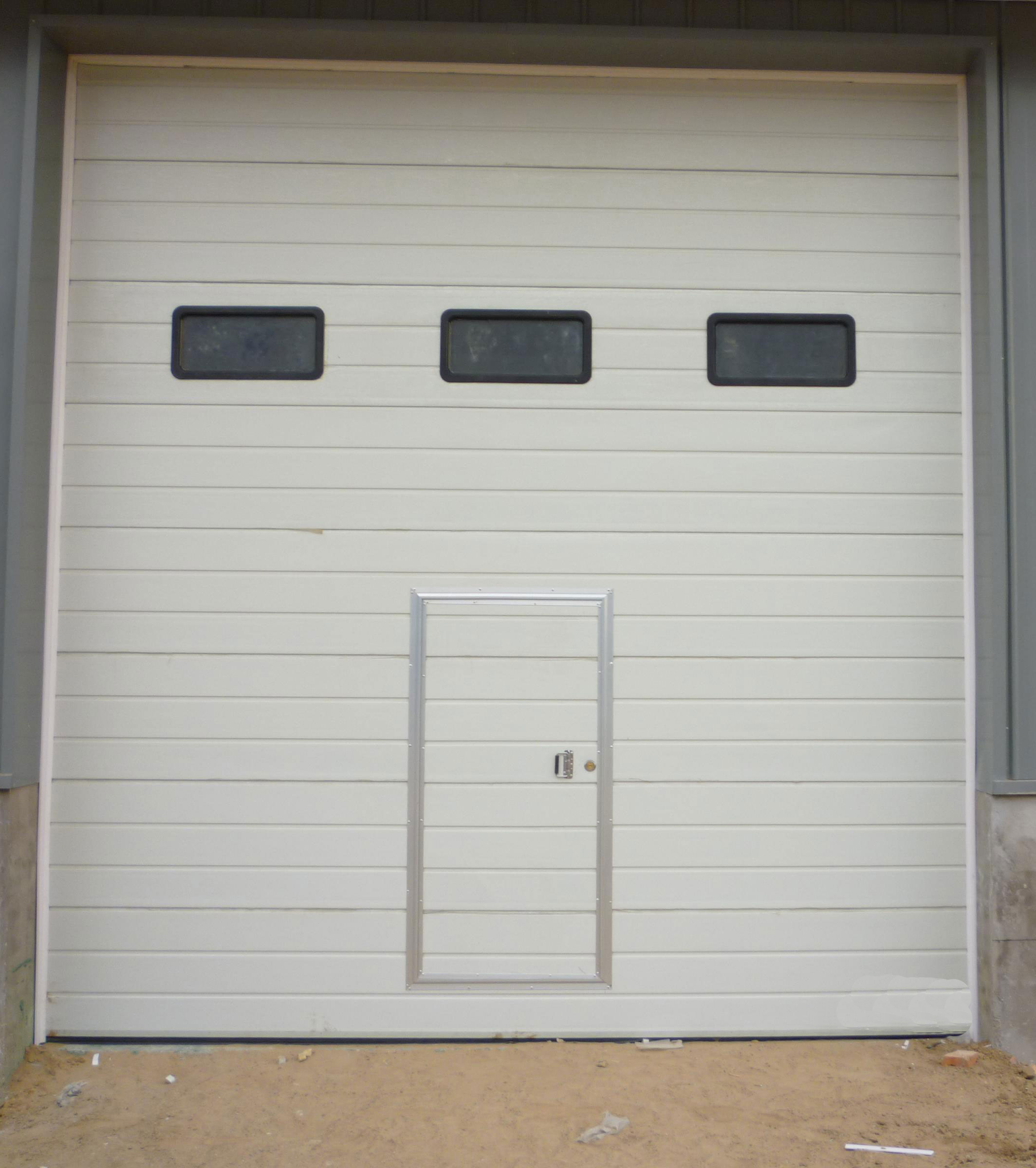

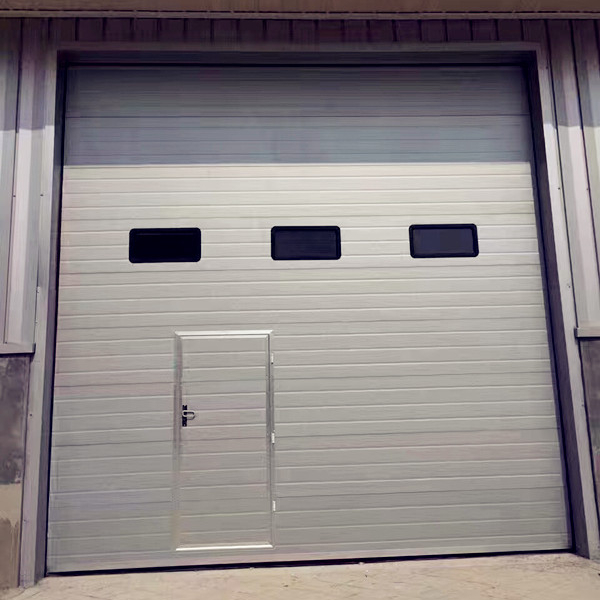

| Pedestrian door | Optional, size can be customized |
| Door opener | Xianfeng brand, with two pieces of remote controls and control box for standard |
| Max size | W9000mm*H8000mm, If the width is over 5m, need add strengthen windproof ribs |
| Working condition | -40°C to 70°C |
| Safety device | Anti falling device for standard. anti-collision column or safety airbag is optional |
| Warranty | 1 year for electric parts, 5 years for mechanical parts |
| Package | LCL: plywood case, FCL: Strong carton, MOQ:1SET |
Details Images

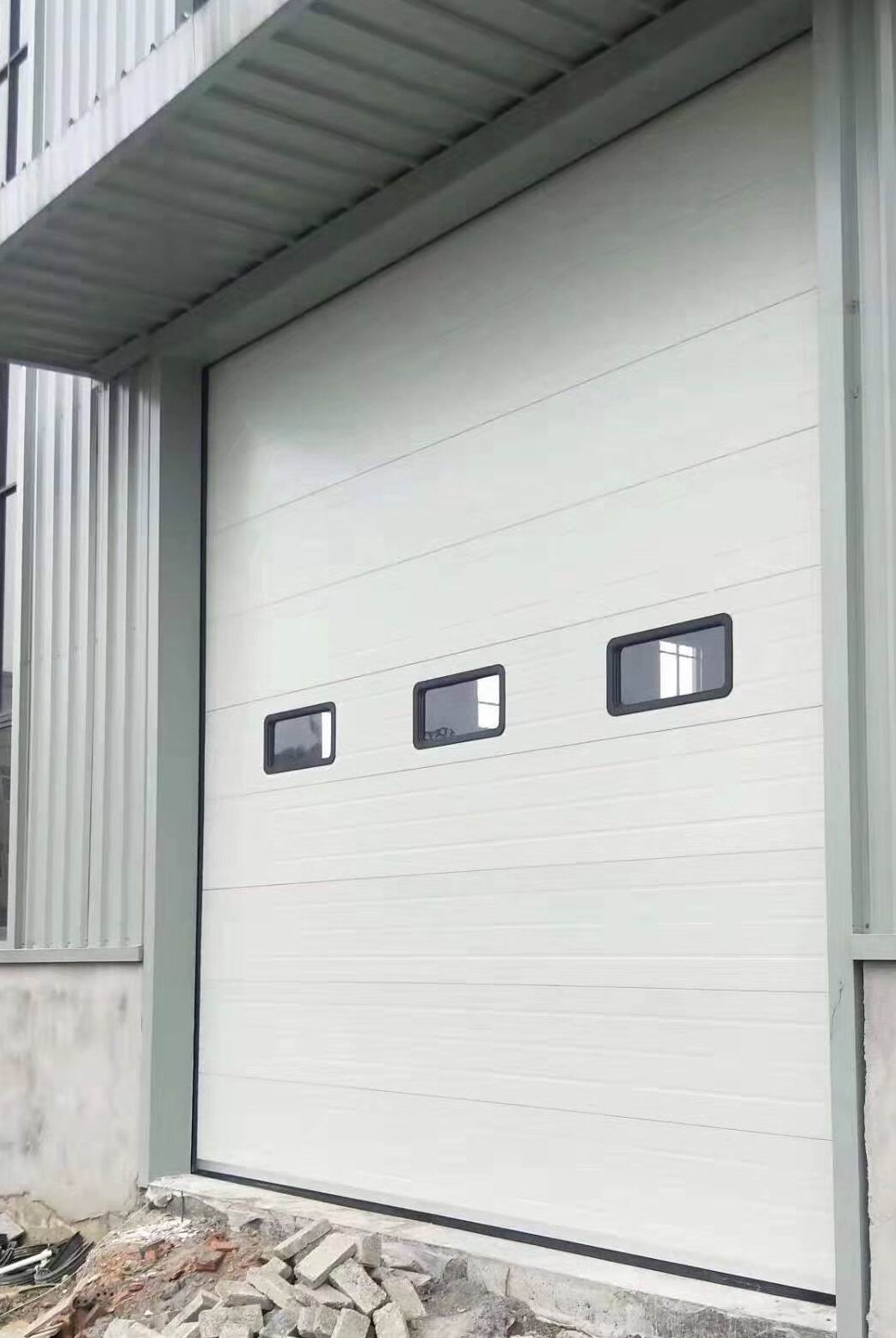

Door panel
Door opener

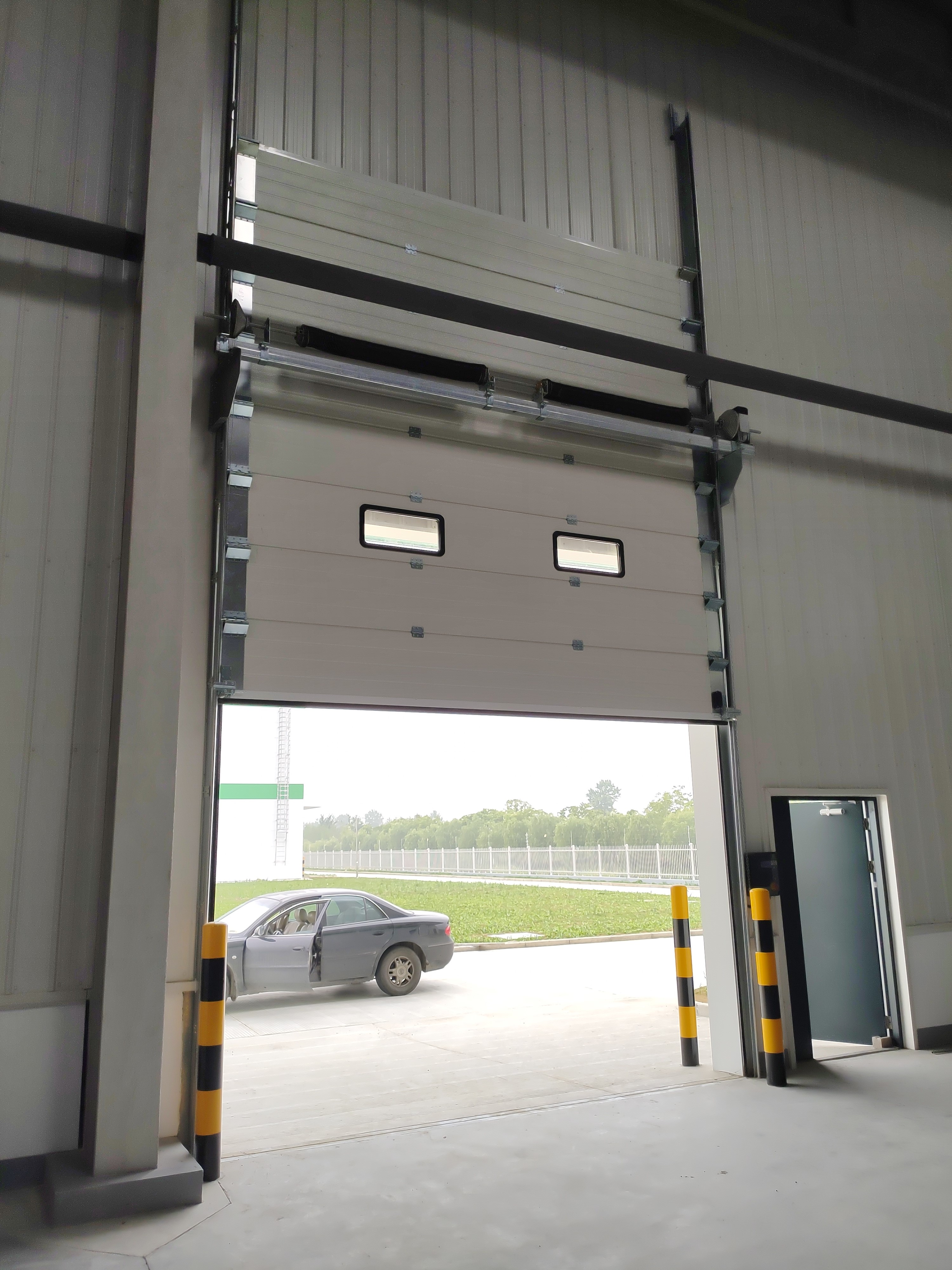

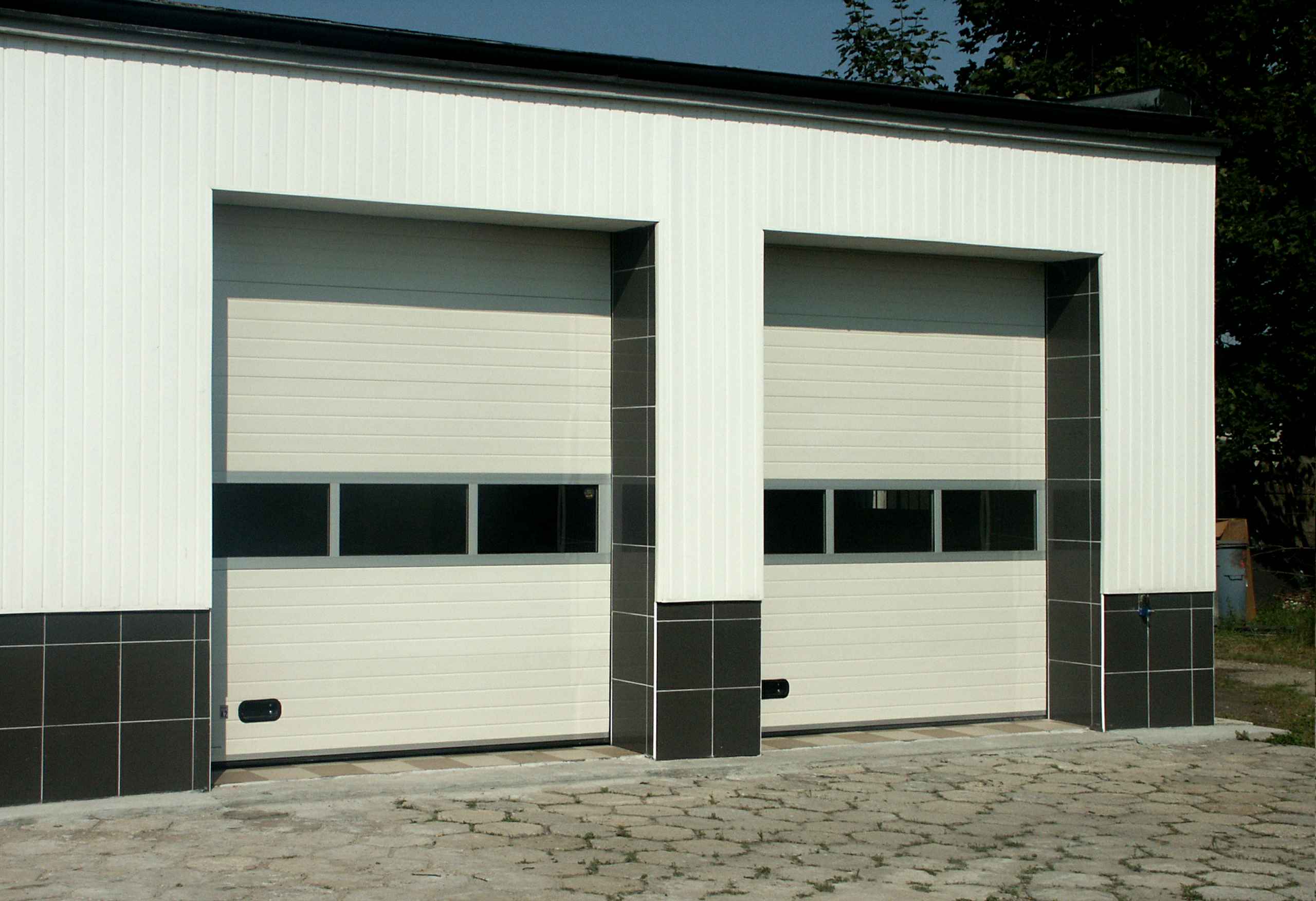

Lift type
Accessories
Packing & Delivery
Applications
Warehouse Loading Dock Sectional Door is commonly specified for Truck loading bays, Warehouse docks, Logistics buildings, Factory dispatch zones. It can also be combined with high speed doors, rolling shutters or dock equipment when one facility includes several traffic zones.
- Truck loading bays
- Warehouse docks
- Logistics buildings
- Factory dispatch zones
Options & Accessories
Options should be selected after checking building drawings and site constraints. The most common choices for this model include:
- Dock seals
- Bottom rubber seal
- Control box
- Photo sensor
FAQ
Where is Warehouse Loading Dock Sectional Door commonly used?
Warehouse Loading Dock Sectional Door is commonly used for truck loading bays, warehouse docks, logistics buildings, factory dispatch zones where reliable overhead access and stable sealing are required.
Can Warehouse Loading Dock Sectional Door be motorized?
Yes. Manual chain hoist and automatic operator configurations can be selected according to traffic frequency, opening size and site preference.
What measurements are needed before quotation?
Please provide opening width, opening height, headroom, side room, ceiling condition, quantity, operation method and destination country.
Can windows and accessories be added?
Yes. Vision windows, safety sensors, remote controls, control boxes, seals and color options can be configured by project.
How should the final door specification be confirmed?
The final specification should be confirmed with drawings, site photos or measured opening data so the panel, track and operator match the building.
