Product Introduction
The Automatic Warehouse Sectional Door is designed for workshops, warehouses and industrial access points that need dependable overhead opening with electric or manual operation. Galvanized steel panels with PU foam support daily use while helping the door provide practical sound insulation and a stable closing surface.
The door can be configured with standard overhead lift, combined lift or vertical lift tracks to suit different building structures. Powder-coated finishing, customized colors, industrial accessories and Chinese top brand hardware help the system match warehouse traffic and project requirements.
For project installation, the door supports customized size planning, safety devices, windows, pedestrian door options and electric control systems. It is suitable for warehouse entrances, factory dispatch areas and logistics openings that need reliable movement and long-term service.
Product Description
Technical Specifications
| Door panel material | Double layer galvanized steel with PU foam inside, thickness: 40mm or 50mm for choice, steel thickness: 0.35mm or 0.426mm for choice |
|---|---|
| Color | White, black, light grey, dark grey, red, silver, beige, green, etc. |
| Accessories | 3inch industrial type accessories |

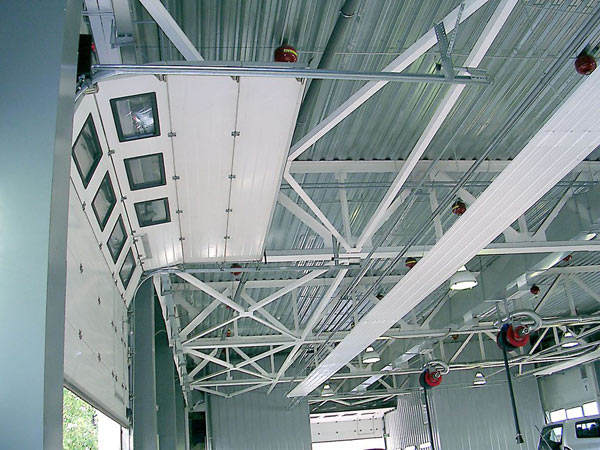

| Lift type | Standard overhead lift way, combined lift way, vertical lift way |
| Window | Optional, window size 650*320mm |

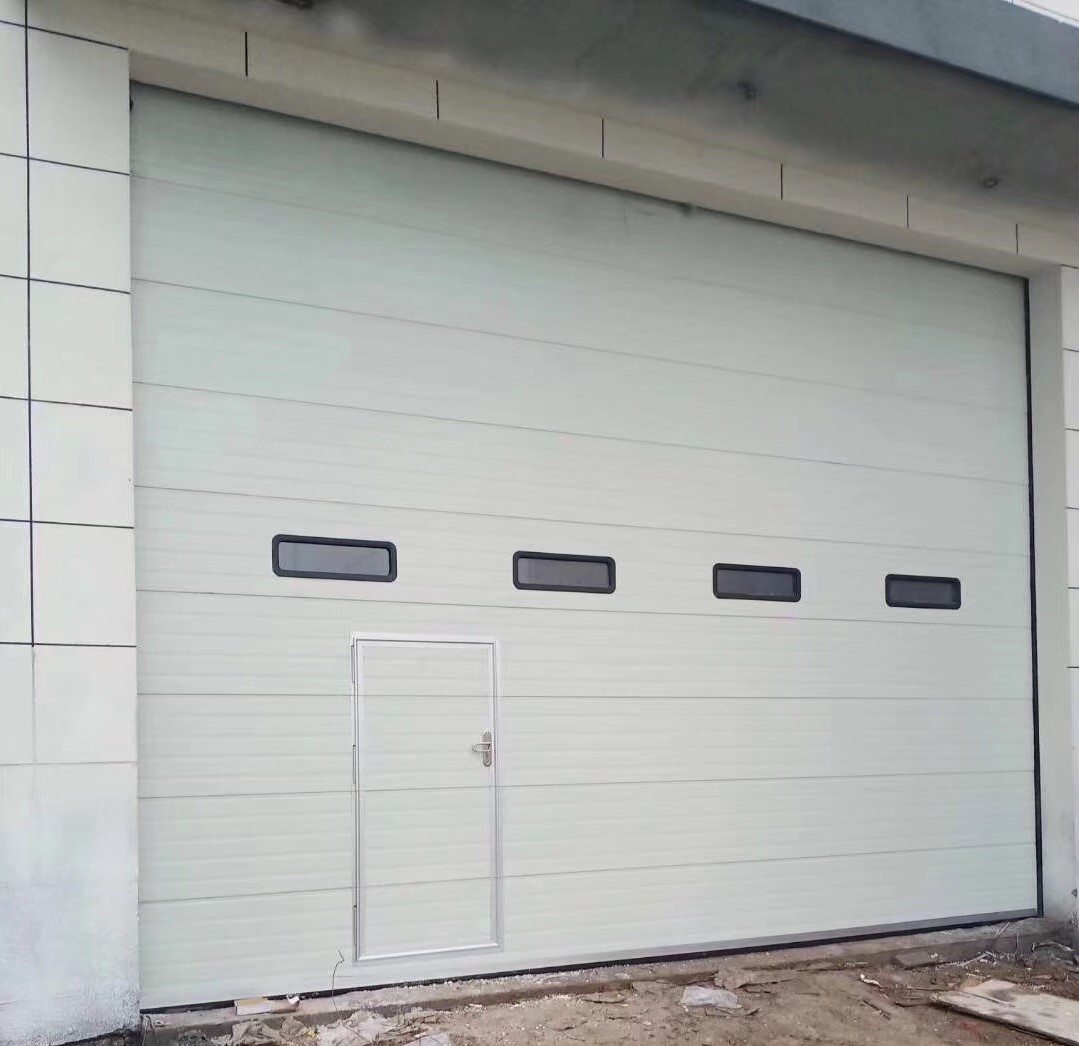

| Pedestrian door | Optional, size can be customized |

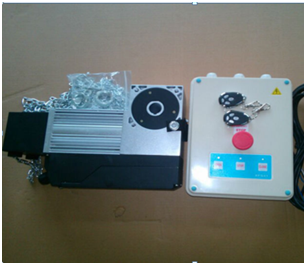

| Door opener | Xianfeng brand, with two pieces of remote controls and control box for standard |
| Max size | W9000mm*H8000mm, If the width is over 5m, need add strengthen windproof ribs |
| Working condition | -40°C to 70°C |
| Safety device | Anti falling device for standard. anti-collision column or safety airbag is optional |
| Warranty | 1 year for electric parts, 5 years for mechanical parts |
| Package | LCL: plywood case, FCL: Strong carton, MOQ:1SET |
Details Images

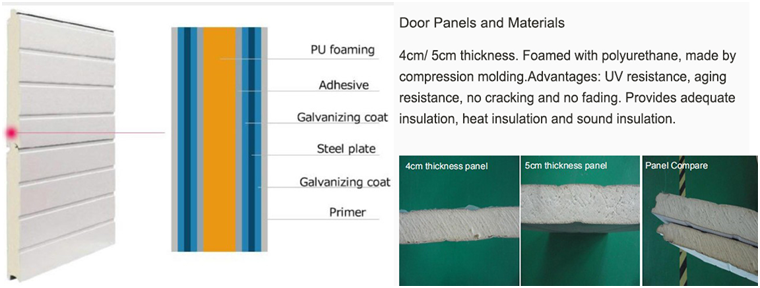

Door panel

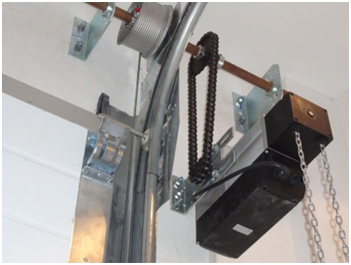

Door opener

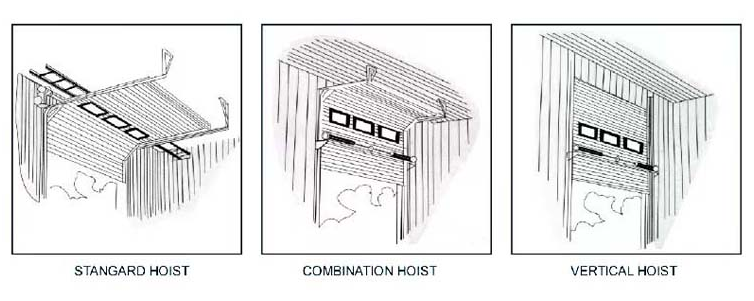

Lift type
Accessories
Packing & Delivery
Applications
Automatic Warehouse Sectional Door is commonly specified for Warehouses, Logistics routes, Factory storage areas, Dispatch doors. It can also be combined with high speed doors, rolling shutters or dock equipment when one facility includes several traffic zones.
- Warehouses
- Logistics routes
- Factory storage areas
- Dispatch doors
Options & Accessories
Options should be selected after checking building drawings and site constraints. The most common choices for this model include:
- Remote transmitter
- Wall switch
- Loop detector

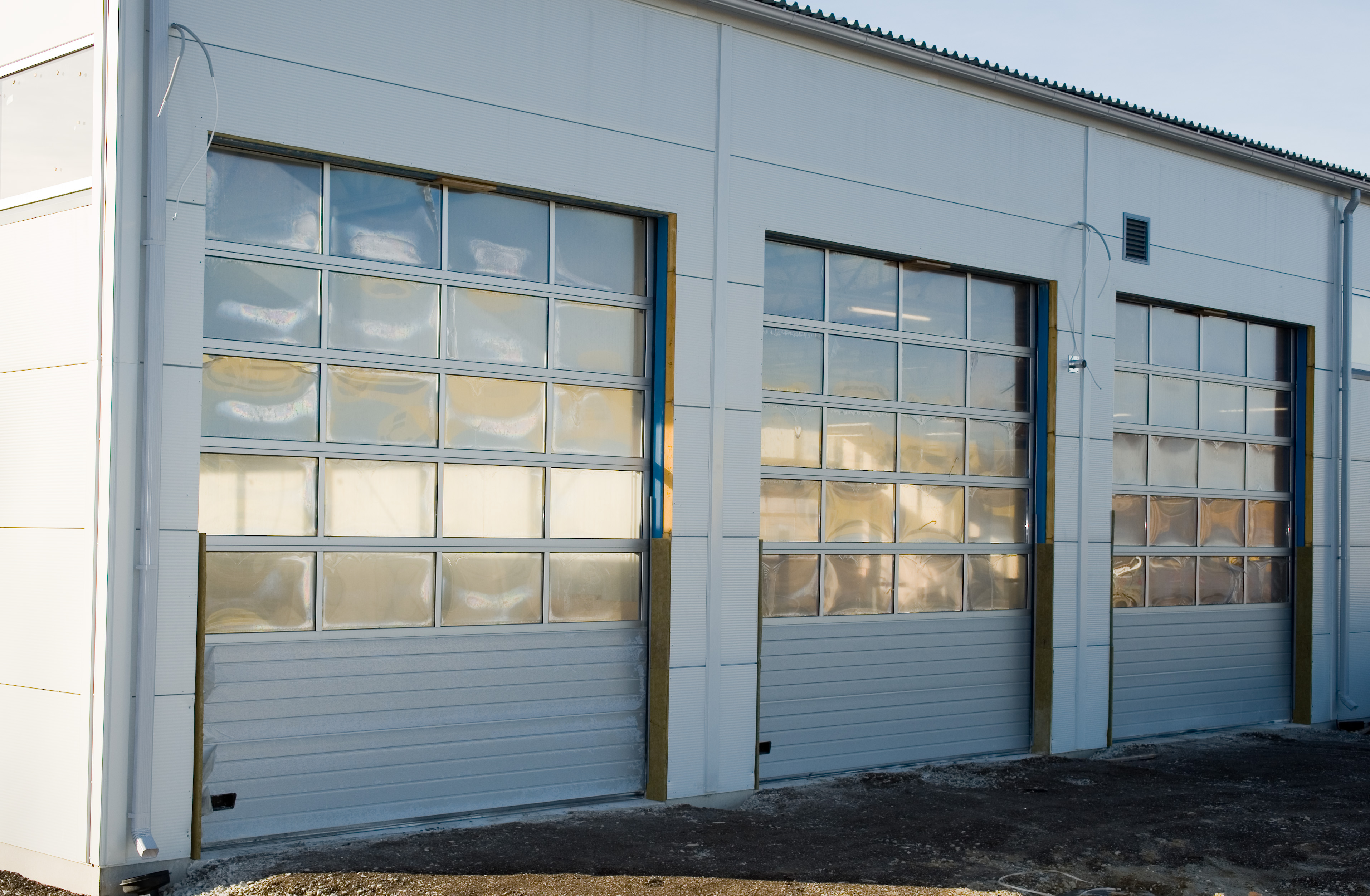

- Vision windows
FAQ
Where is Automatic Warehouse Sectional Door commonly used?
Automatic Warehouse Sectional Door is commonly used for warehouses, logistics routes, factory storage areas, dispatch doors where reliable overhead access and stable sealing are required.
Can Automatic Warehouse Sectional Door be motorized?
Yes. Manual chain hoist and automatic operator configurations can be selected according to traffic frequency, opening size and site preference.
What measurements are needed before quotation?
Please provide opening width, opening height, headroom, side room, ceiling condition, quantity, operation method and destination country.
Can windows and accessories be added?
Yes. Vision windows, safety sensors, remote controls, control boxes, seals and color options can be configured by project.
How should the final door specification be confirmed?
The final specification should be confirmed with drawings, site photos or measured opening data so the panel, track and operator match the building.

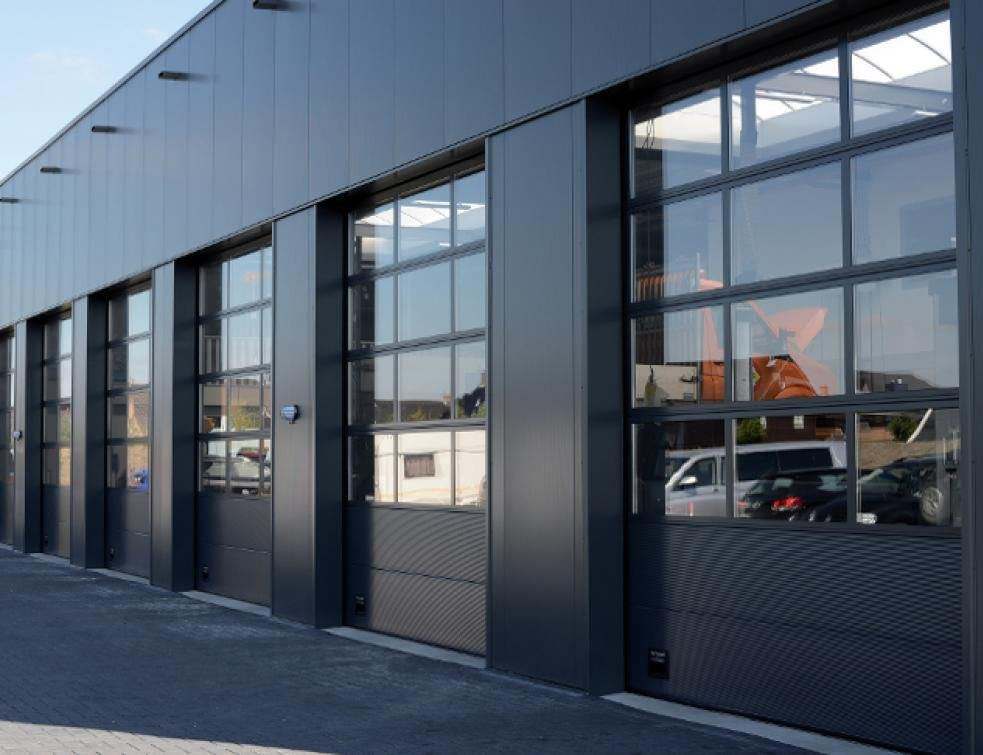

Related Products
