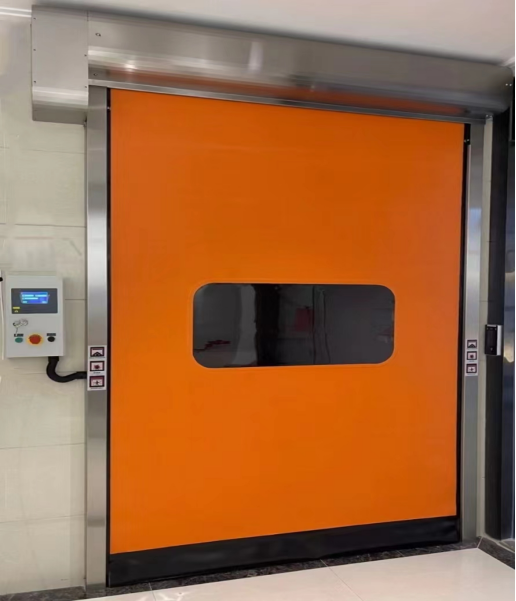

Product Introduction
The PVC High Speed Roll Up Door is designed for busy industrial passages where forklifts, carts and staff need quick access without leaving the opening exposed for long periods. A flexible PVC curtain, fast motor control and safety sensing help reduce waiting time while supporting cleaner separation between production, storage and traffic areas.
Product Description
Technical Specifications
| Door panel material | High density fabric cloth imported from France, with Sioen brand, with windproof aluminum ribs or without |
|---|---|
| Curtain color | Black, white, bronze, light grey, dark grey, beige or various wood look color |
| Visual window(optional) | High quality PVC cloth (1.0/1.5mm) |
| Hardware material | #304 stainless steel, ensure high quality |
| Door opener | Three kinds for choice: 1) Servo motor,0.75-1.5KW, 50-60HZ 2) SEW motor:0.75-2.2KW, 50-60HZ 3) SEJ motor:0.9-2.2KW, 50-60HZ |
| Running speed | 0.8-1.5m/s, can be adjustable |
| Sensors | Standard: photocell, radar, and push button Optional: loop detector, remote control, light curtain sensor, safety airbag, magnetic card, pull cord |
| Max size | W9000mm*H8000mm, If over this size, we can recommend our another flexible double layer high speed folding door |
| Working condition | -40°C to 70°C |
| Wind resistance | 60-80km/h, folding type has better windproof function |
| Application | Food factory, pharmaceutical factory, electric factory, cold storage, etc. |
| MOQ | 1SET |
| Warranty | 1 year for electric parts, 5 years for mechanical parts |
| Package | LCL: plywood case, FCL: Strong carton, MOQ:1SET |
Details Images
Drawing
Curtain color for choice
Motor and control box
Control system for choice
Operation way and safety device
Manual mode: push button
press “up” button--door open--forklift go through--press “down”button--door close
Auto mode: radar, loop detector, light curtain sensor, etc
Semi-auto mode: pull cord, magnetic card, remote control
Packing & Delivery
Optional Configurations
- Transparent vision window
- Radar sensor
- Loop detector
- Photo beam
- Air curtain linkage
FAQ
Where is PVC High Speed Roll Up Door commonly used?
PVC High Speed Roll Up Door is commonly used for warehouses, factories, logistics centers, industrial workshops where fast opening and controlled access are required.
What information is needed before quotation?
Please send opening width, opening height, quantity, application, operation preference, site photos if available and destination country.
