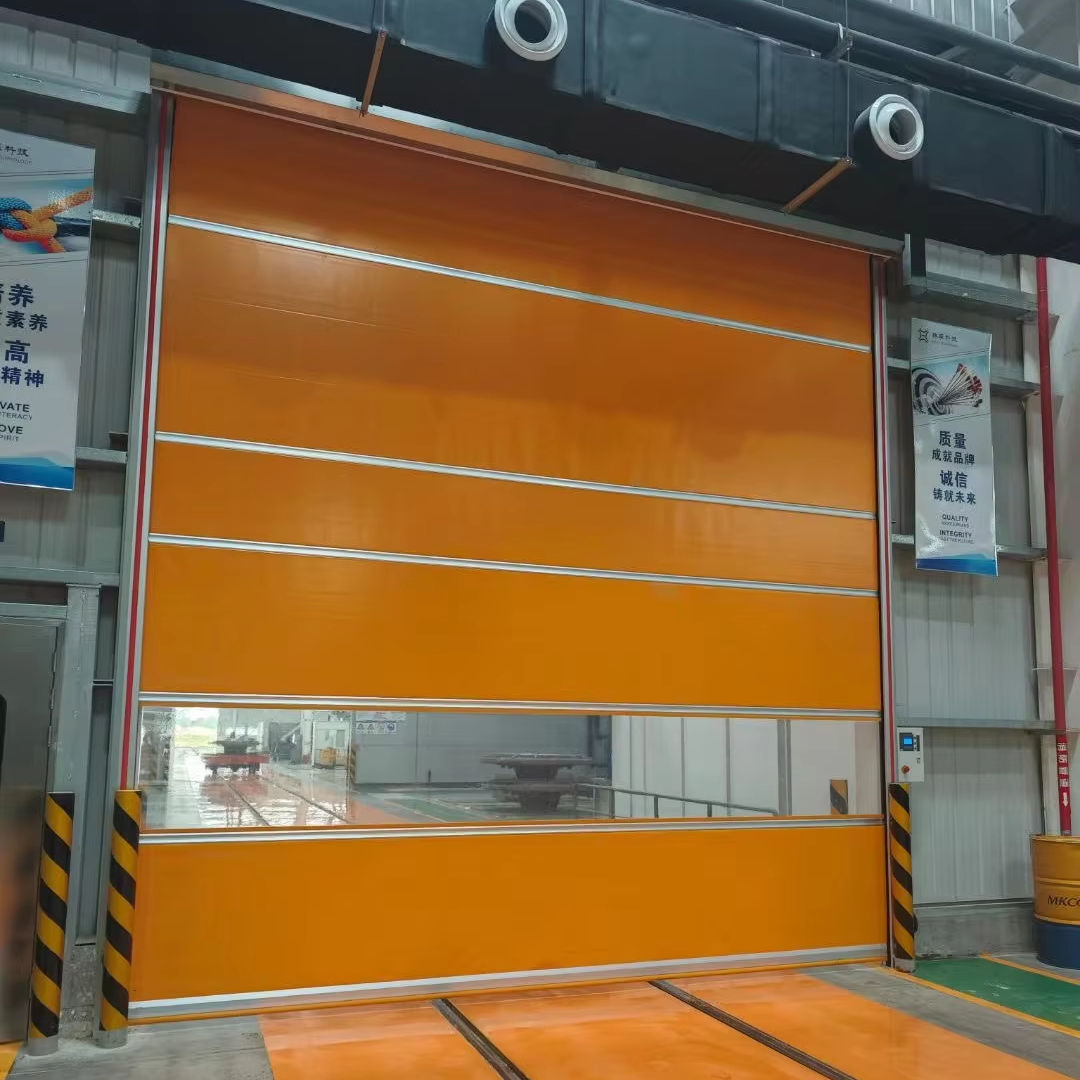

Product Introduction
The Customized Flame Retardant PVC High Speed Door with Vision Panel is configured for sites that need both safer curtain material and visibility through the opening. Size, curtain color, window layout and activation method can be adapted to different workshop and factory requirements.
Product Description
Curtain color for choice(France famous brand--Sioen)

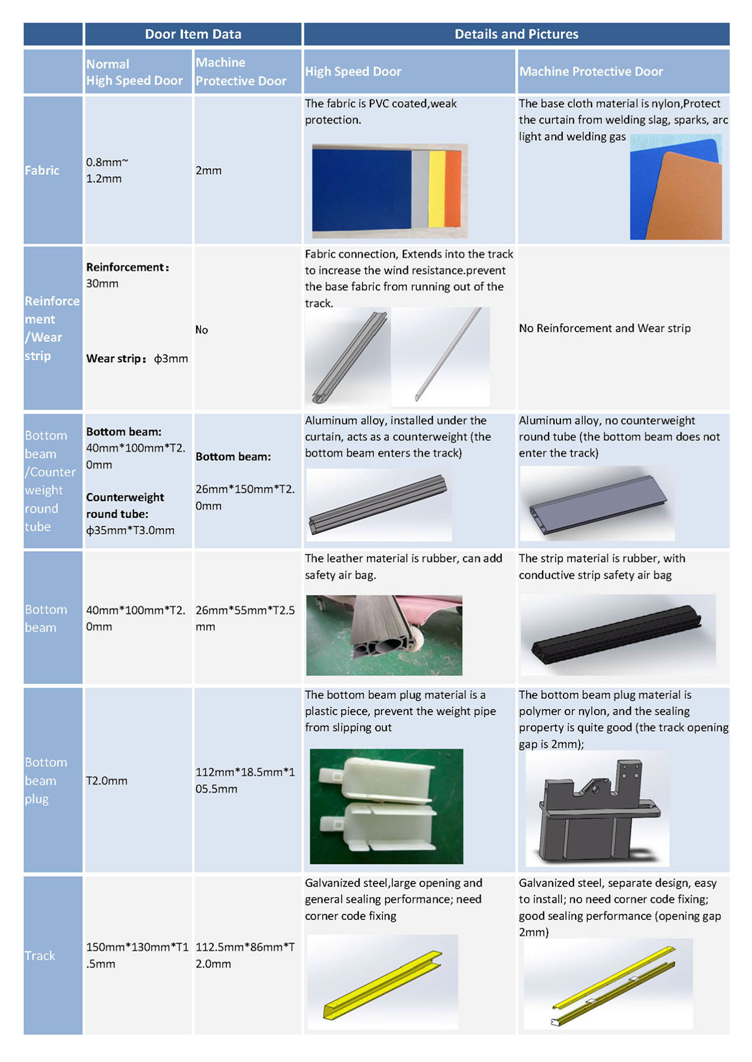

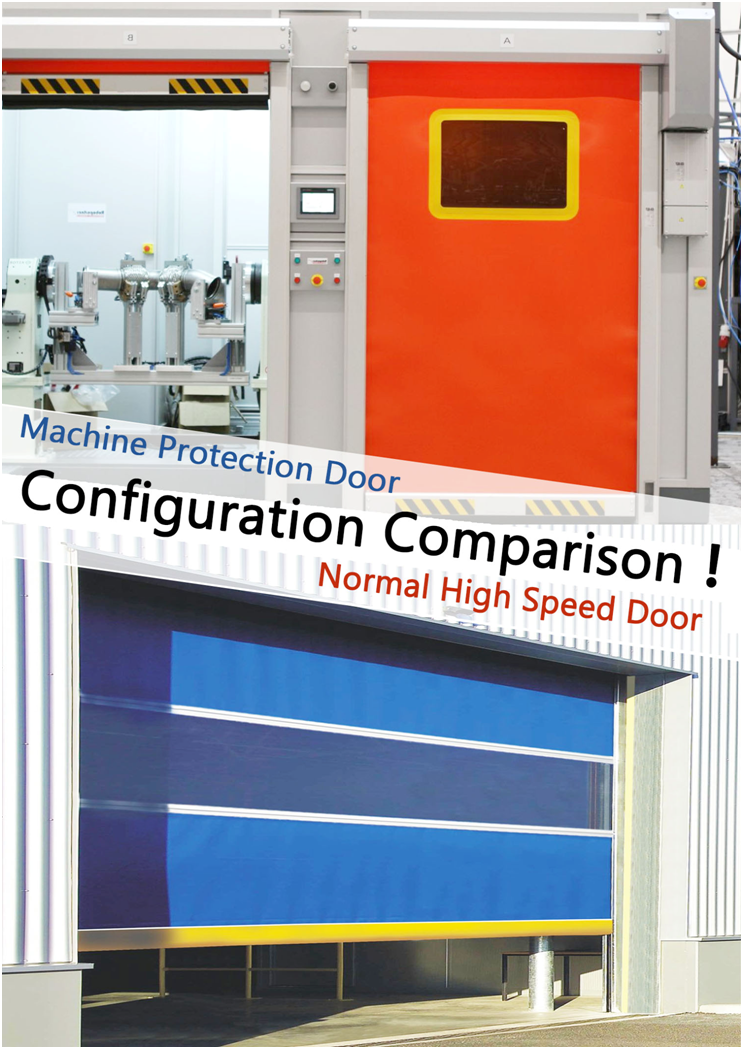

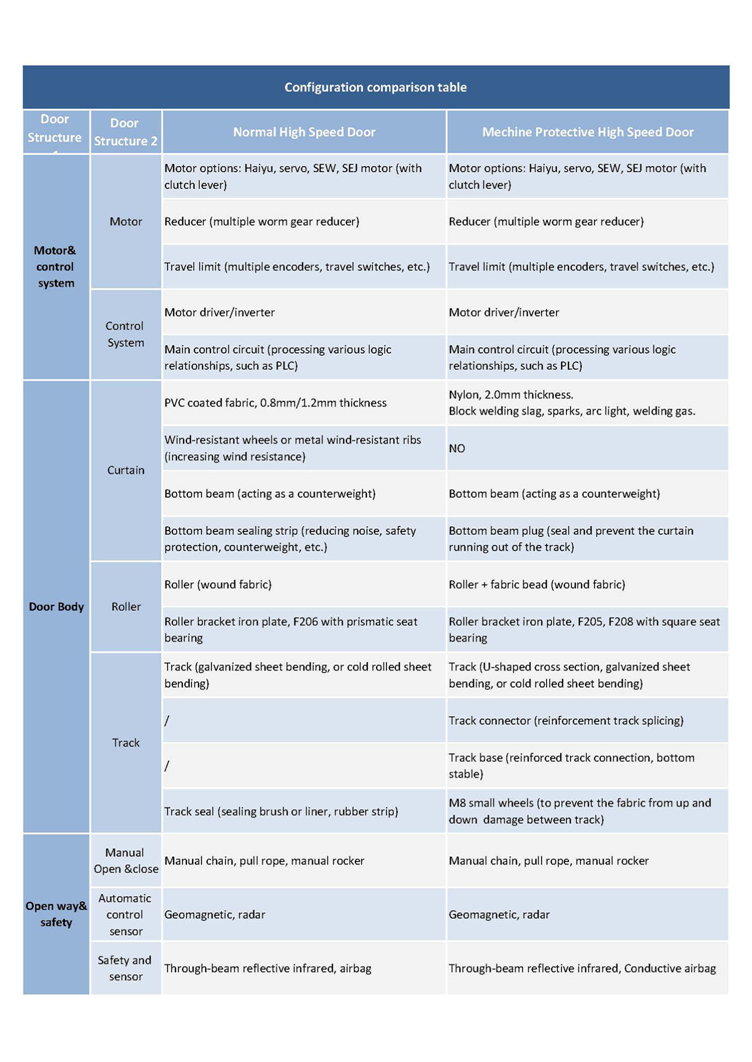

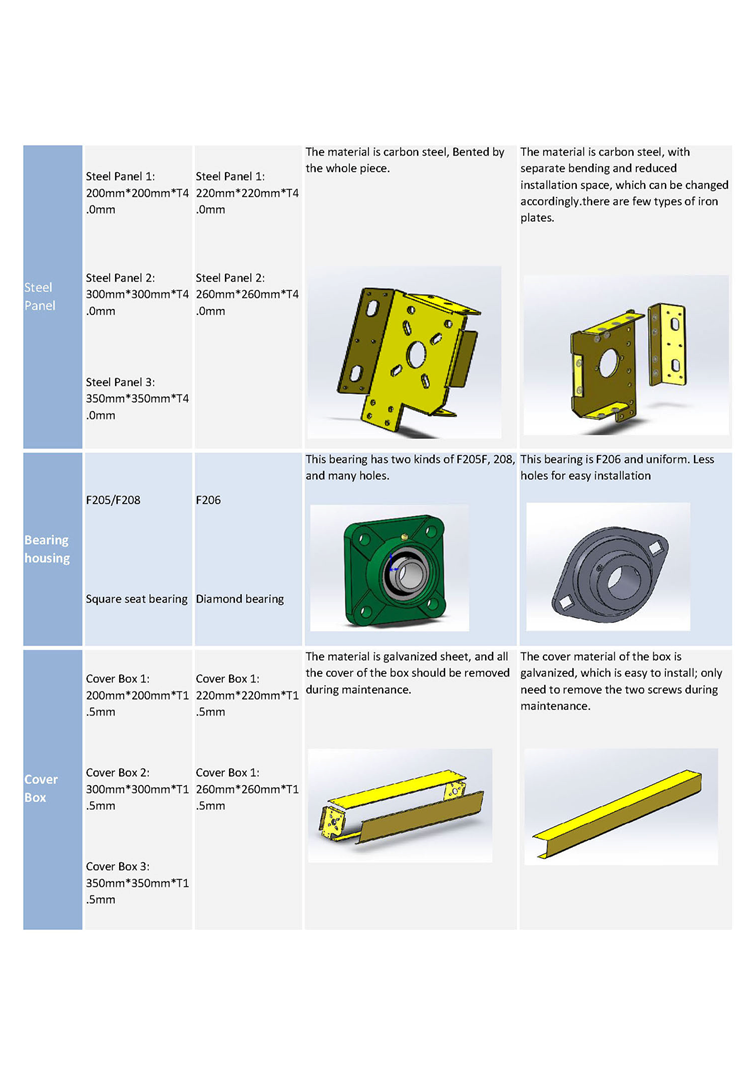

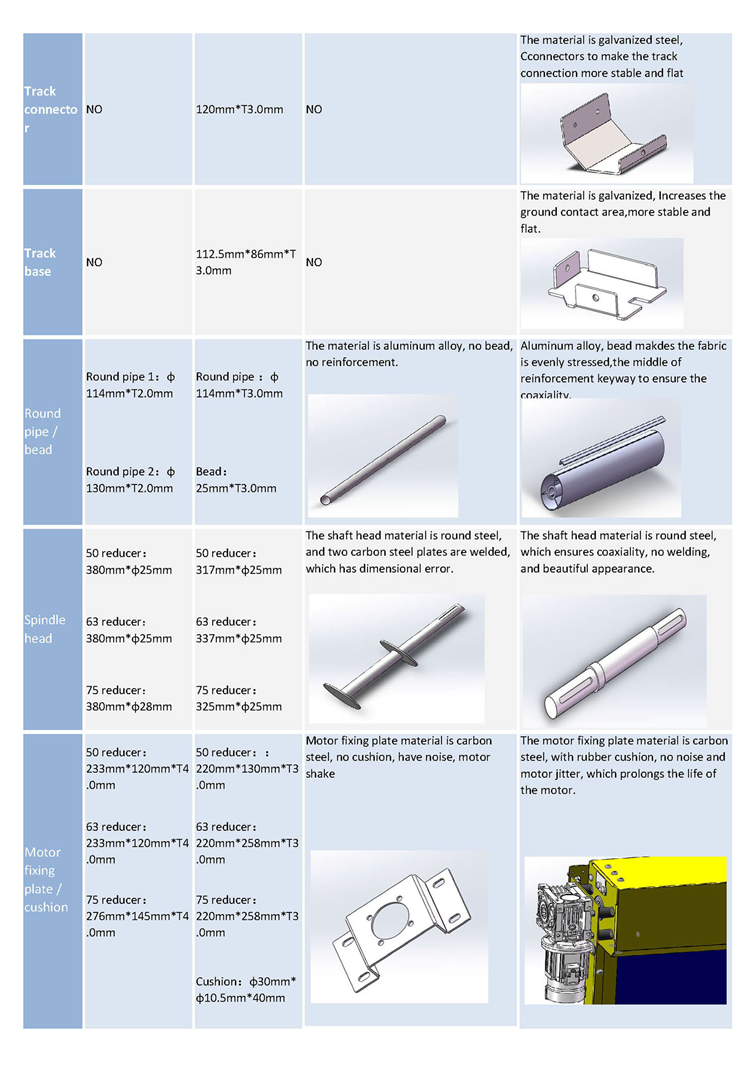

Difference between this welding door and normal high speed door
Technical Specifications
| Door curtain | High density fabric cloth (strong, hard, flat, anti-spark,2.0mm thick) |
|---|---|
| Curtain color | Orange,blue,grey |
| Visual window（optional） | High quality PVC cloth（over 2.0mm） |
| Accessories | With whole set of high quality hardware |
| Door opener | Three kinds for choice: 1) Servo motor 0.75-1.5KW, 50-60HZ 2) SEW motor:0.75-2.2KW, 50-60HZ 3) SEJ motor:0.9-2.2KW, 50-60HZ |
| Running speed | 0.8-1.5m/s,can be adjustable |
| Sensors | Standard: photocell,radar,and push button Optional: loop detector, remote control, light curtain sensor, safety airbag, magnetic card, pull cord |
| Max size | W9000mm*H8000mm,If over this size, we can recommend our another flexible double layer high speed folding door |
| Working condition | -40℃ to 70℃ |
| Wind resistance | 60-80km/h, folding type has better windproof function |
| Application | Welding room, robot production line |
| MOQ | 1SET |
| Warranty | 1 year for electric parts, 5 years for mechanical parts |
| Package | LCL: plywood case, FCL: Strong carton. |

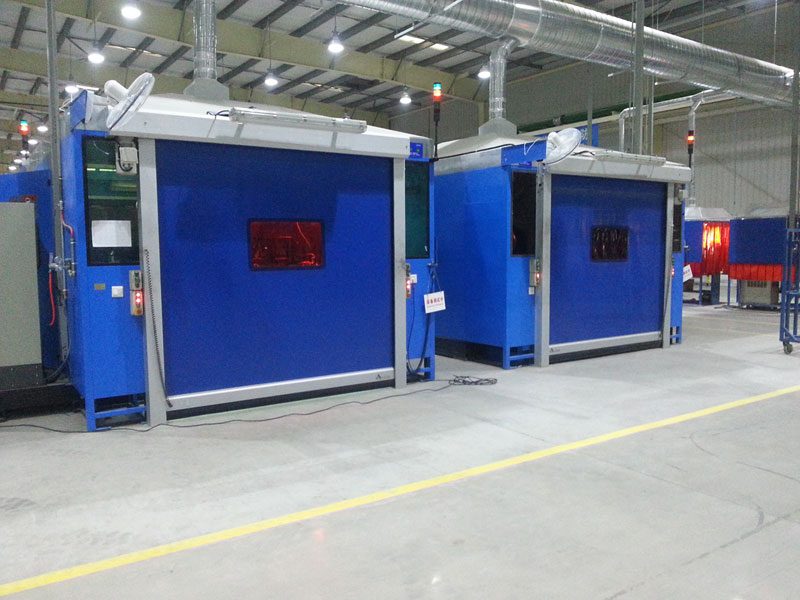

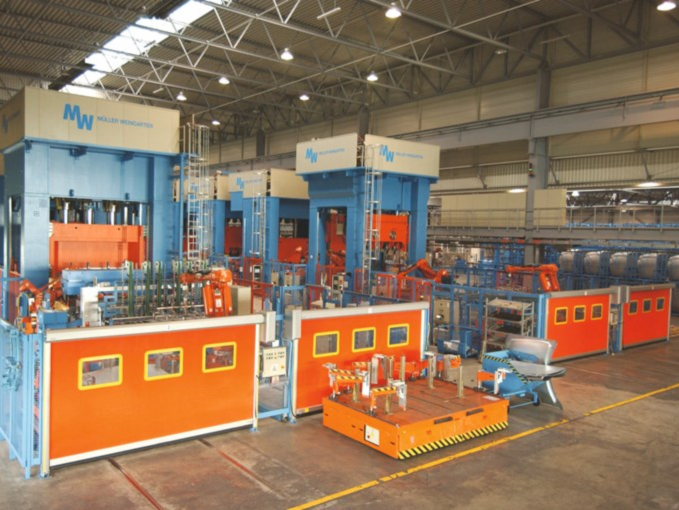

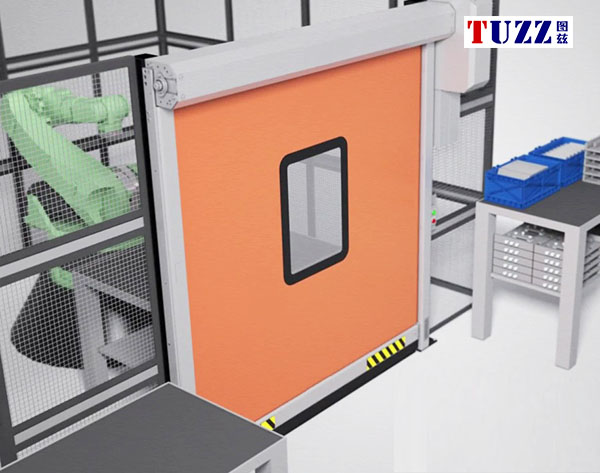

Details Images
Motor and control box
Control system for choice
Operation way and safety device
Manual mode: push button
press “up” button--door open--forklift go through--press “down”button--door close
Auto mode: radar, loop detector, light curtain sensor, etc
Semi-auto mode: pull cord, magnetic card, remote control
Packing & Delivery
Optional Configurations
- Flame retardant curtain
- Vision window
- Warning light
- Radar sensor
- Manual emergency chain
FAQ

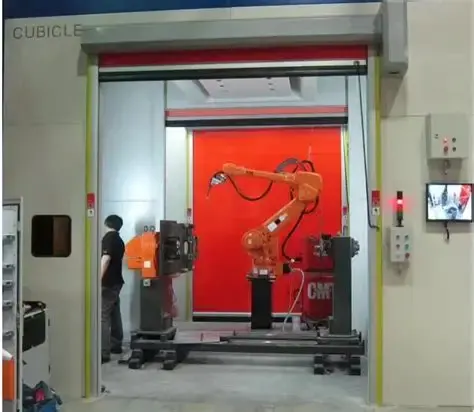

Where is Customized Flame Retardant PVC High Speed Door with Vision Panel commonly used?
Customized Flame Retardant PVC High Speed Door with Vision Panel is commonly used for welding workshops, metal fabrication areas, industrial plants, maintenance bays where fast opening and controlled access are required.
What information is needed before quotation?
Please send opening width, opening height, quantity, application, operation preference, site photos if available and destination country.

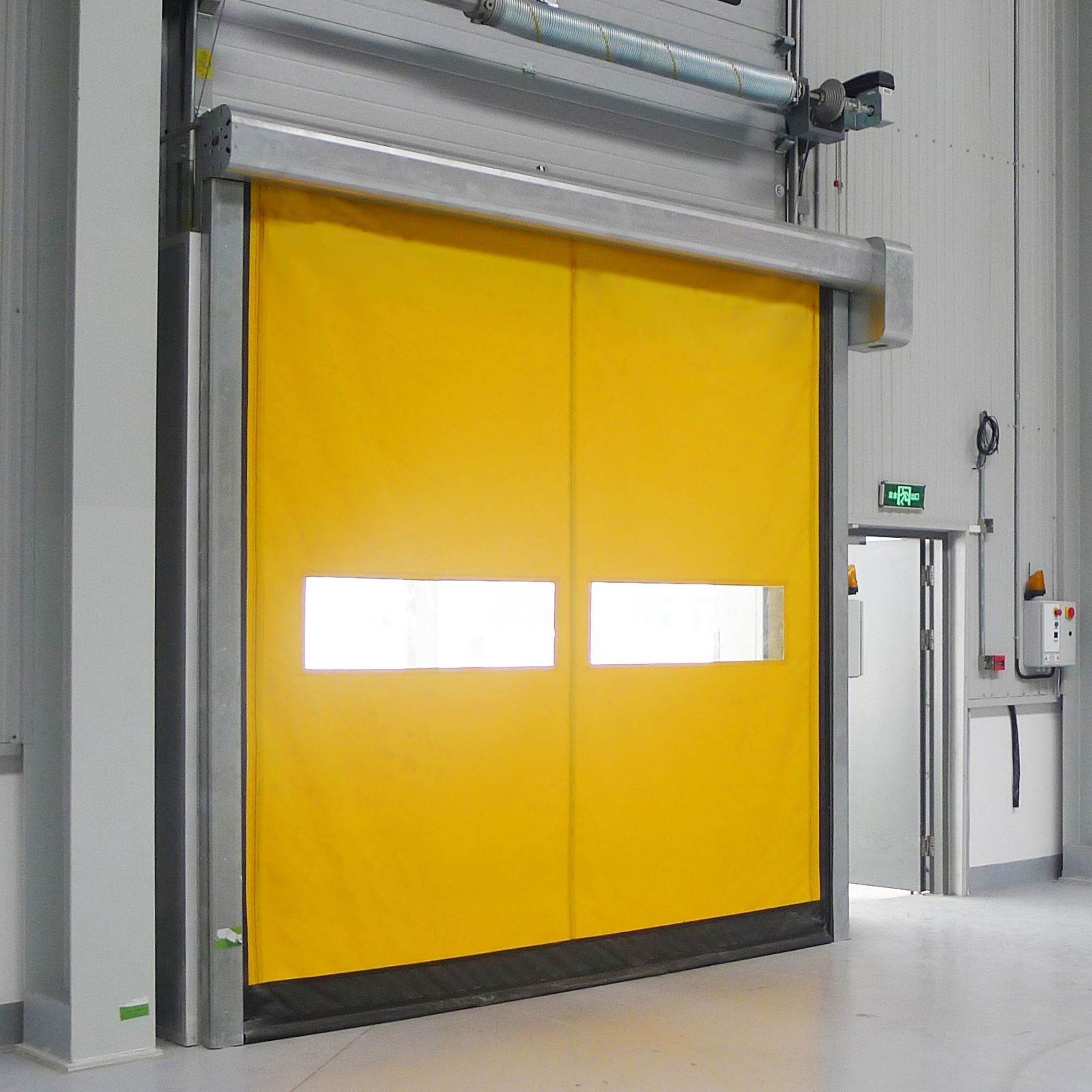

Related Products
