Product Introduction

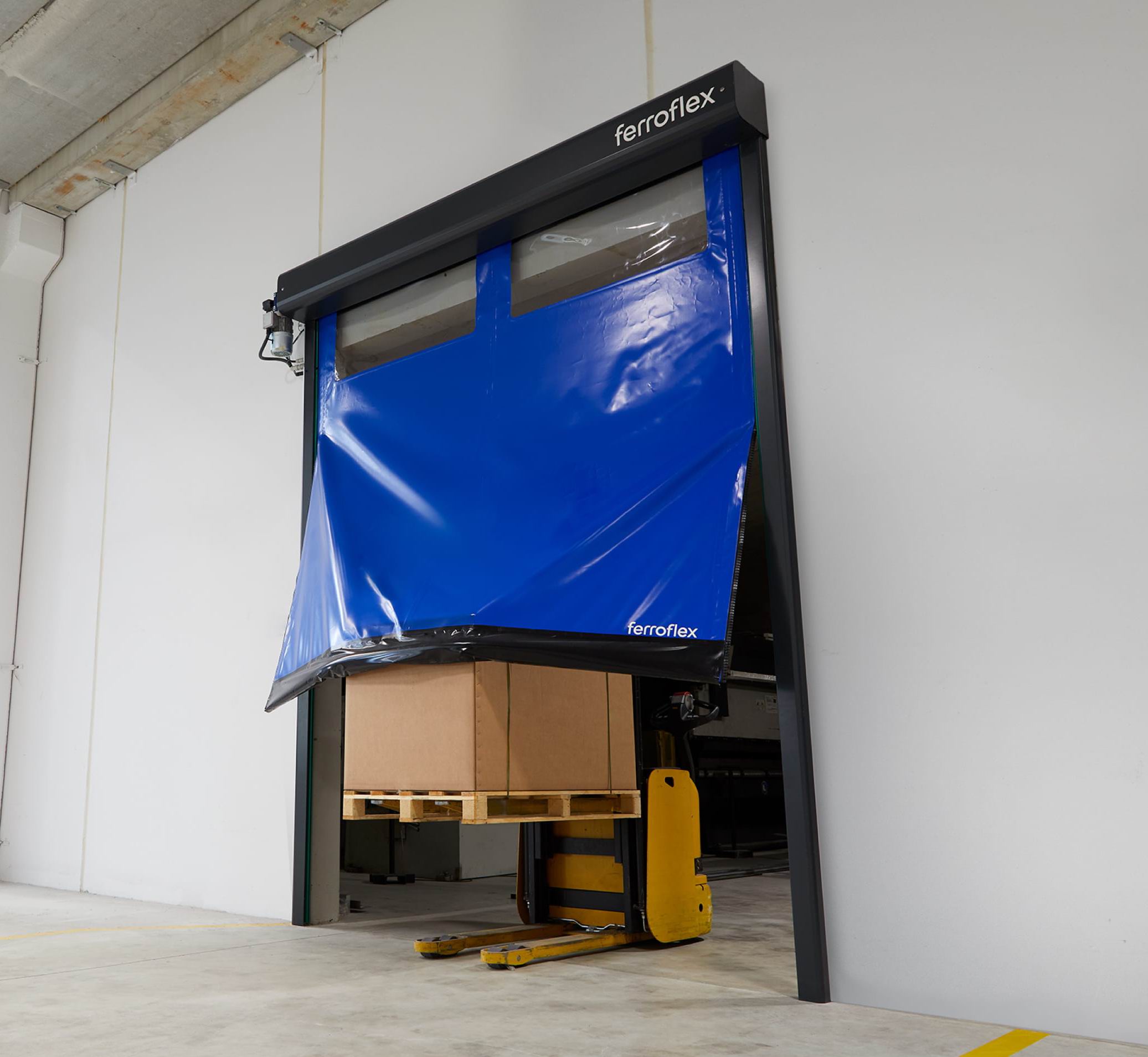

The Industrial Self Repairing Zipper PVC High Speed Door is built for busy workshops and logistics passages where accidental curtain impact can happen during forklift movement. The zipper edge helps the curtain return into the guide system while the fast motor control supports efficient access and reliable separation between production areas.
Product Description
Highlights at a glance
- High Speed Operation: Quick opening/closing for efficient workflow.
- Thermal Insulation: Keeps indoor temperature stable, reducing energy costs.
- Modern Design: Sleek appearance enhances workshop aesthetics.
- Durable Finish: Resistant to wear and tear, ensuring long-lasting use.
- Customizable Colors: Available in various shades to match your workspace.
Technical Specifications
| Door panel material | High density PVC fabric curtain with reinforced windproof ribs |
|---|---|
| Curtain color | Yellow, orange, blue, grey, red, white, green or customized color |
| Visual window(optional) | High quality transparent PVC vision window |
| Hardware material | #304 stainless steel, ensure high quality |
| Door opener | Three kinds for choice: 1) Servo motor,0.75-1.5KW, 50-60HZ 2) SEW motor:0.75-2.2KW, 50-60HZ 3) SEJ motor:0.9-2.2KW, 50-60HZ |
| Running speed | 0.8-1.5m/s, can be adjustable |
| Sensors | Standard: photocell, radar, and push button Optional: loop detector, remote control, light curtain sensor, safety airbag, magnetic card, pull cord |
| Max size | W9000mm*H8000mm, If over this size, we can recommend our another flexible double layer high speed folding door |
| Working condition | -40°C to 70°C |
| Wind resistance | 60-80km/h, folding type has better windproof function |
| Application | Industrial workshops, Logistics passages, Manufacturing plants, Forklift traffic areas |
| MOQ | 1SET |
| Warranty | 1 year for electric parts, 5 years for mechanical parts |
| Package | LCL: plywood case, FCL: Strong carton, MOQ:1SET |
Details Images
Drawing
Curtain color for choice
Motor and control box
Control system for choice
Operation way and safety device
Manual mode: push button
press “up” button--door open--forklift go through--press “down”button--door close
Auto mode: radar, loop detector, light curtain sensor, etc
Semi-auto mode: pull cord, magnetic card, remote control
Packing & Delivery
Optional Configurations
- Radar sensor
- Loop detector
- Interlock control
- Vision window
- Warning light
FAQ
Where is Industrial Self Repairing Zipper PVC High Speed Door commonly used?
Industrial Self Repairing Zipper PVC High Speed Door is commonly used for industrial workshops, logistics passages, manufacturing plants, forklift traffic areas where fast opening and controlled access are required.
What information is needed before quotation?
Please send opening width, opening height, quantity, application, operation preference, site photos if available and destination country.
