Product Introduction
Fire Rated Panic Bar Exit Door combines galvanized steel panels, fireproof infill, steel frame and selected panic bar hardware for evacuation routes that need fire separation and fast emergency egress. The door can be configured as single swing or double swing, with customized size, color, frame thickness, door closer, push bar, lock options and optional visual window according to project requirements.
For public buildings, schools and commercial exits, Anjie Door reviews opening size, fireproof time, wall condition, escape route requirements, panic hardware schedule and installation environment before recommending a practical fire rated panic bar exit door configuration. It is suitable for emergency exits, stairwell doors, corridors and other openings where fire protection and quick exit access are required.
- Panic bar exit application
- Single or double swing opening
- Customized size and color
- Optional visual window
- Door closer and push bar options
- Project-ready steel frame
Product Description
Specification
| Door panel | double layer galvanized steel(1.0mm)+fireproof cotton inside, the surface is treated with powder coating, panel thickness: 50mm |
|---|---|
| Color | White, grey, beige, etc. |
| Visual window(optional) | High quality polycarbonate plate |
| Hardware material | #304 stainless steel |
| Open type | Single swing or double swing |
| Working condition | -40°C to 70°C |
| Fireproof time | 90-120minutes |
| Application | Residential or commercial or industrial buildings |
| MOQ | 1SET |
| Package | LCL: plywood case, FCL: Strong carton. |
Details Images
Lock & hardware
Door closer
Push bar (Optional)
Open direction

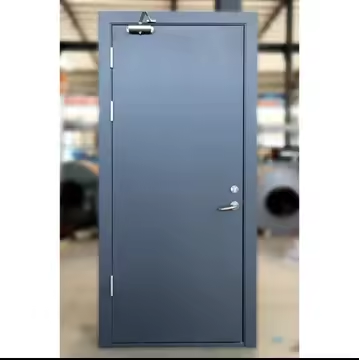

Finished door
Product packaging
Packed with plywood wood case
Panel: wrapped with bubble film, Others: carton box
Fire Rating Options
Fire rating selection should be confirmed according to the building design, local code requirements, opening position and required fire separation time.
Compliance Standards
Compliance options are configured according to project requirements. Certification, labels and test reports should be confirmed before ordering.
FAQ
What is a fire rated panic bar exit door used for?
It is used for public buildings, schools, commercial exits and emergency routes that need fire separation plus fast egress hardware.
Can hardware be customized?
Yes. Lock, handle, hinge, door closer, push bar, visual window and opening direction can be selected according to project needs.
What fire rating options are available?
Common project options include 60, 90, 120, 180 and 240 minutes. The final rating should be confirmed according to project drawings and local requirements.
Which compliance standards can be considered?
Project compliance can be discussed around UL 10B, UL 10C, NFPA 80, BS 476 and EN 1634 requirements, depending on the market and specification.
What information is needed for quotation?
Please send opening width, height, wall type, fireproof time, quantity, hardware requirements and destination country.
