Product Introduction

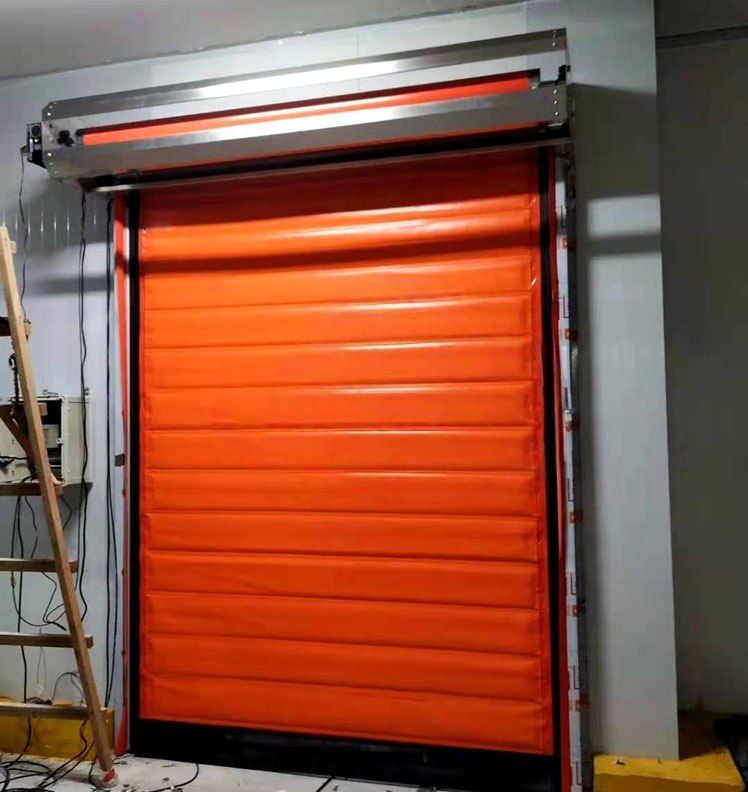

An automatic PVC high speed cold storage door for freezer rooms, cold rooms and refrigerated processing areas with frequent traffic. This automatic pvc cold storage high speed door for freezer rooms is built for temperature-controlled facilities that need reliable insulation, airtight sealing and durable daily operation. It can be configured for cooler rooms, freezer rooms, refrigerated warehouses, food processing plants and cold chain logistics projects without forcing a one-size-fits-all specification.
Anjie Door supports custom opening size, panel thickness, surface finish and operation method according to the site temperature, traffic frequency and hygiene requirements. The final cold storage door solution can include stainless steel surface, heated frame, safety release, viewing window, sensor control or automatic operation where required.
- Fast opening and closing for frequent cold storage traffic
- Insulated PVC curtain helps reduce temperature loss
- Self repairing or magnetic sealing options available by project
- Optional radar, loop detector, pull cord and remote control
- Custom size, color, motor and control configuration
Product Description
Specification
| Door panel material | fabric+aluminum foil+fabric+aluminum foil+fabric,total 5layers, middle layer with zipper,can't be open windows |
|---|---|
| Curtain color | Black, white, bronze, light grey, dark grey, beige or various of wood look color |
| Hardware material | #304 stainless steel,ensure high quality |
| Door opener | Three kinds for choice: 1) Servo motor,0.75-1.5KW, 50-60HZ 2) SEW motor:0.75-2.2KW, 50-60HZ 3) SEJ motor:0.9-2.2KW, 50-60HZ |
| Running speed | 0.8-1.5m/s,can be adjustable |
| Sensors | Standard: photocell,radar,and push button Optional: loop detector, remote control, light curtain sensor, safety airbag, magnetic card, pull cord |
| Max size | W900mm*H8000mm,If over this size, we can recommend our another flexible double layer high speed folding door |
| Working condition | -40°C to 70°C |
| Wind resistance | 60-80km/h, folding type has better windproof function |
| Application | Food factory, pharmaceutical factory, electric factory, cold storage, etc. |
| MOQ | 1SET |
| Warranty | 1 year for electric parts, 5 years for mechanical parts |
| Package | LCL: plywood case ,FCL: Strong carton, MOQ:1SET |
Details Images
Drawing
Curtain color for choice
Motor and control box
Control system for choice
Operation way and safety device
Manual mode: push button
press “up” button--door open--forklift go through--press “down”button--door close
Auto mode: radar, loop detector, light curtain sensor, etc
Semi-auto mode: pull cord, magnetic card, remote control
Product packaging
FAQ
Where is Automatic PVC Cold Storage High Speed Door for Freezer Rooms commonly used?
Automatic PVC Cold Storage High Speed Door for Freezer Rooms is commonly used for freezer rooms, chiller rooms, refrigerated warehouses, food processing plants and cold chain logistics passages.
Can Automatic PVC Cold Storage High Speed Door for Freezer Rooms be customized?
Yes. Opening size, curtain color, frame material, motor, control method, sensors and temperature application can be customized by project requirement.
What information is needed for quotation?
Please provide opening width, opening height, quantity, temperature range, traffic frequency, operation preference and destination country.
